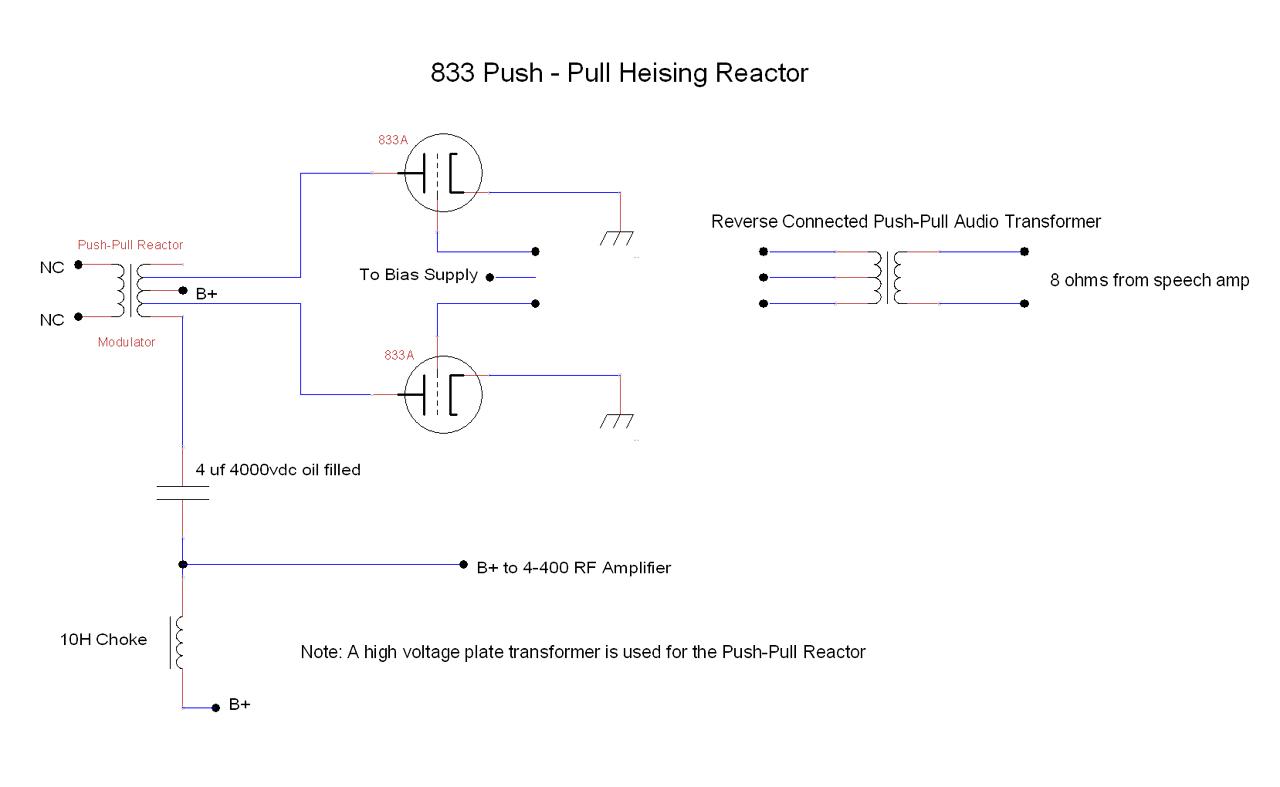

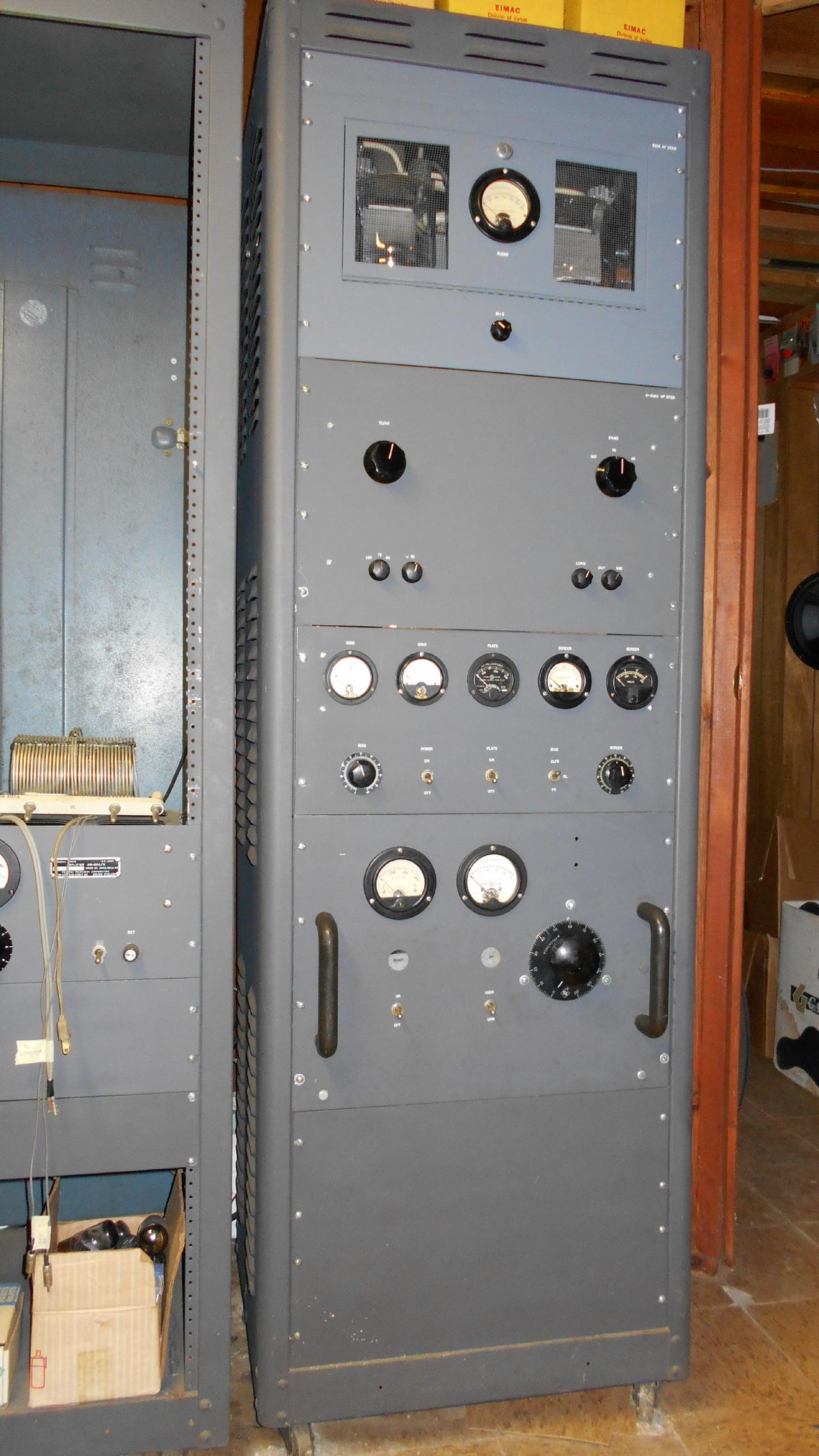

4-400C RF Deck x Pair of 833A Modulators

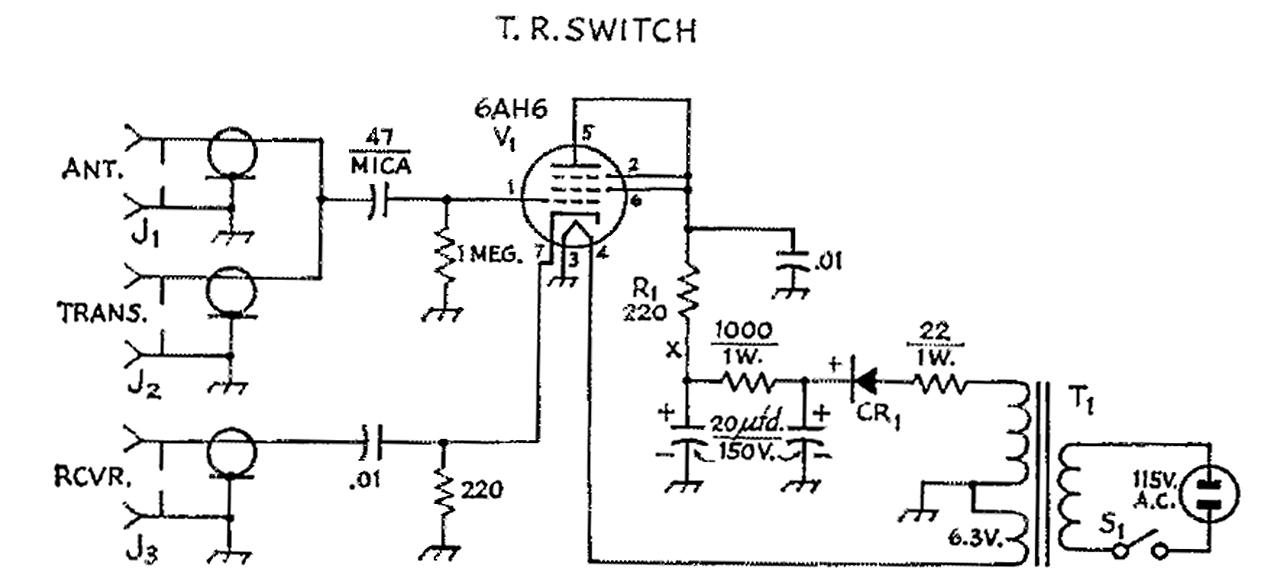

Electronic T/R switching installed in the pi-network of the RF deck

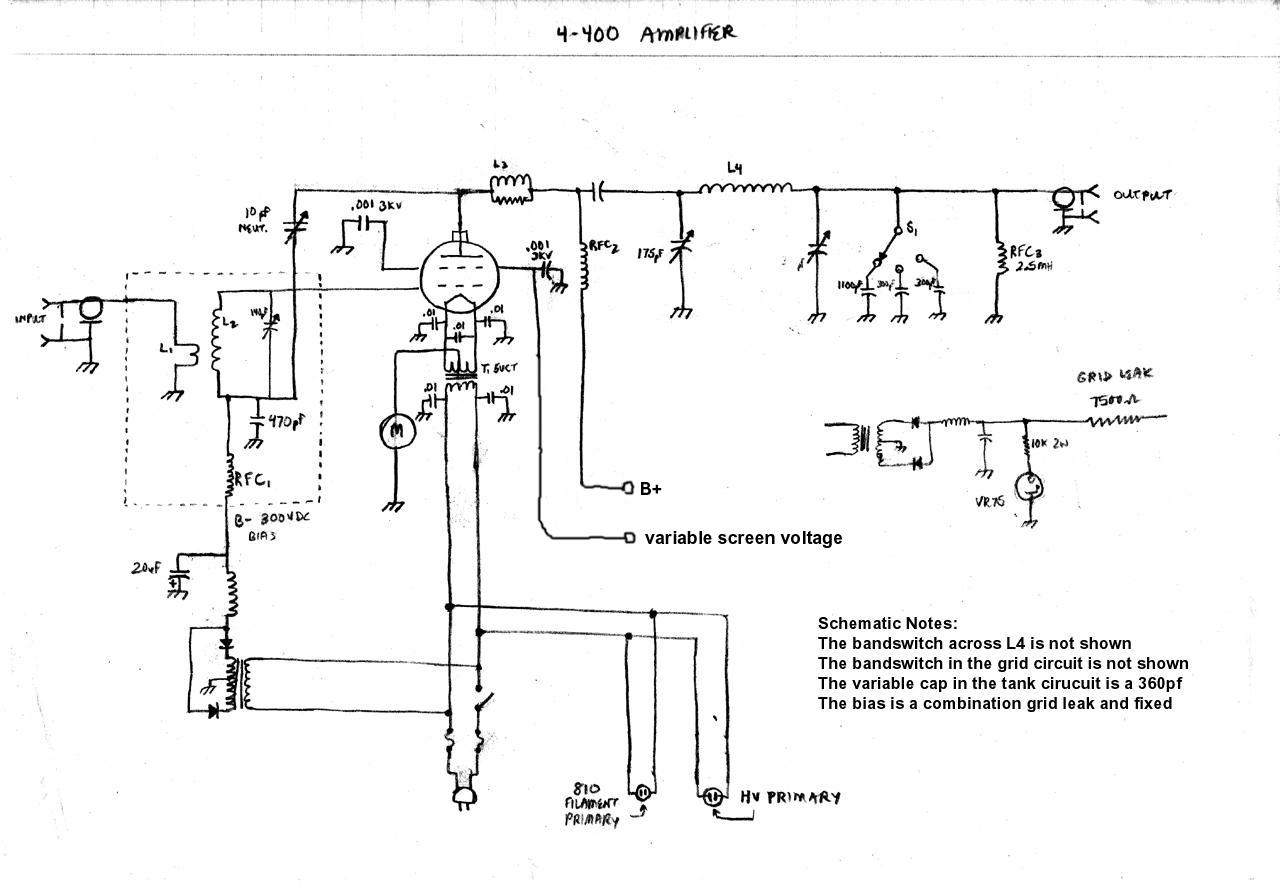

4-400C Amplifier Deck (Drawn before the bandswitch was installed in the grid and output tank circuit)

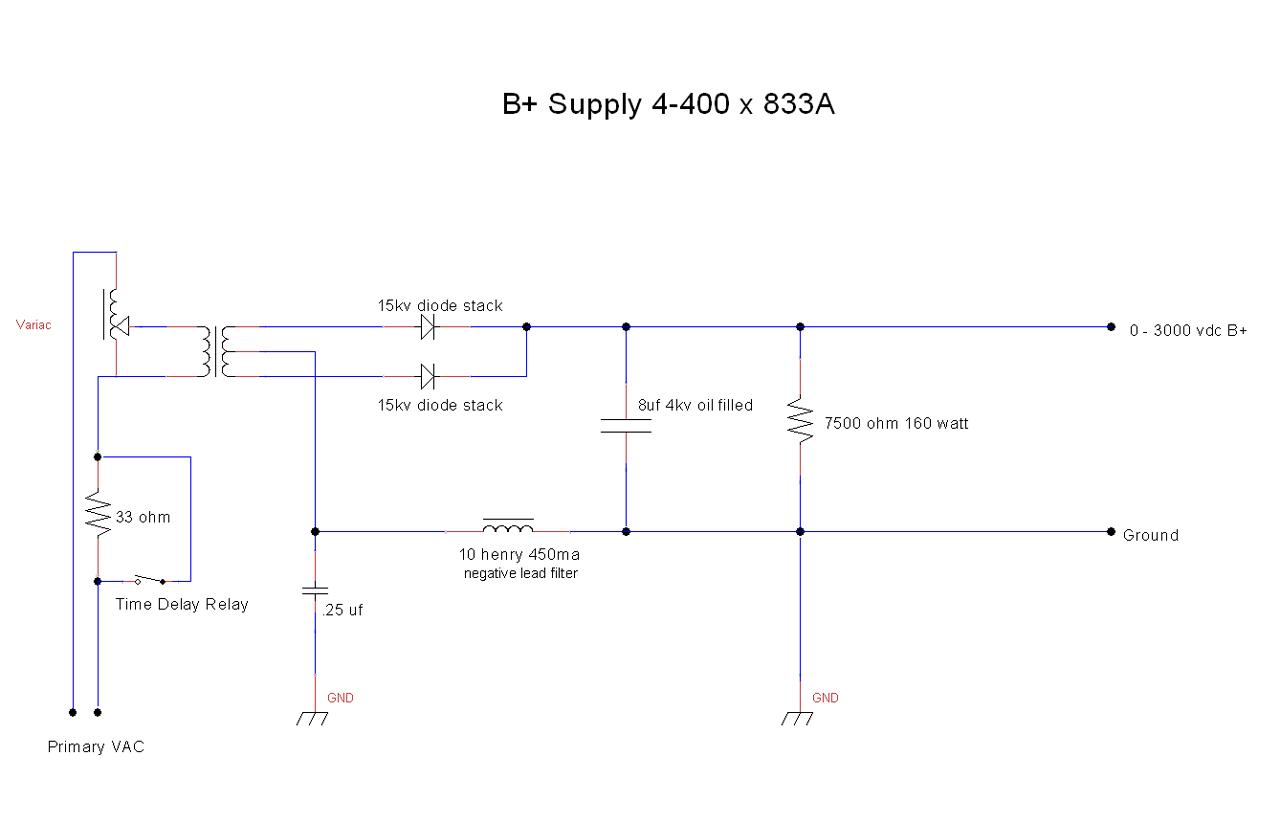

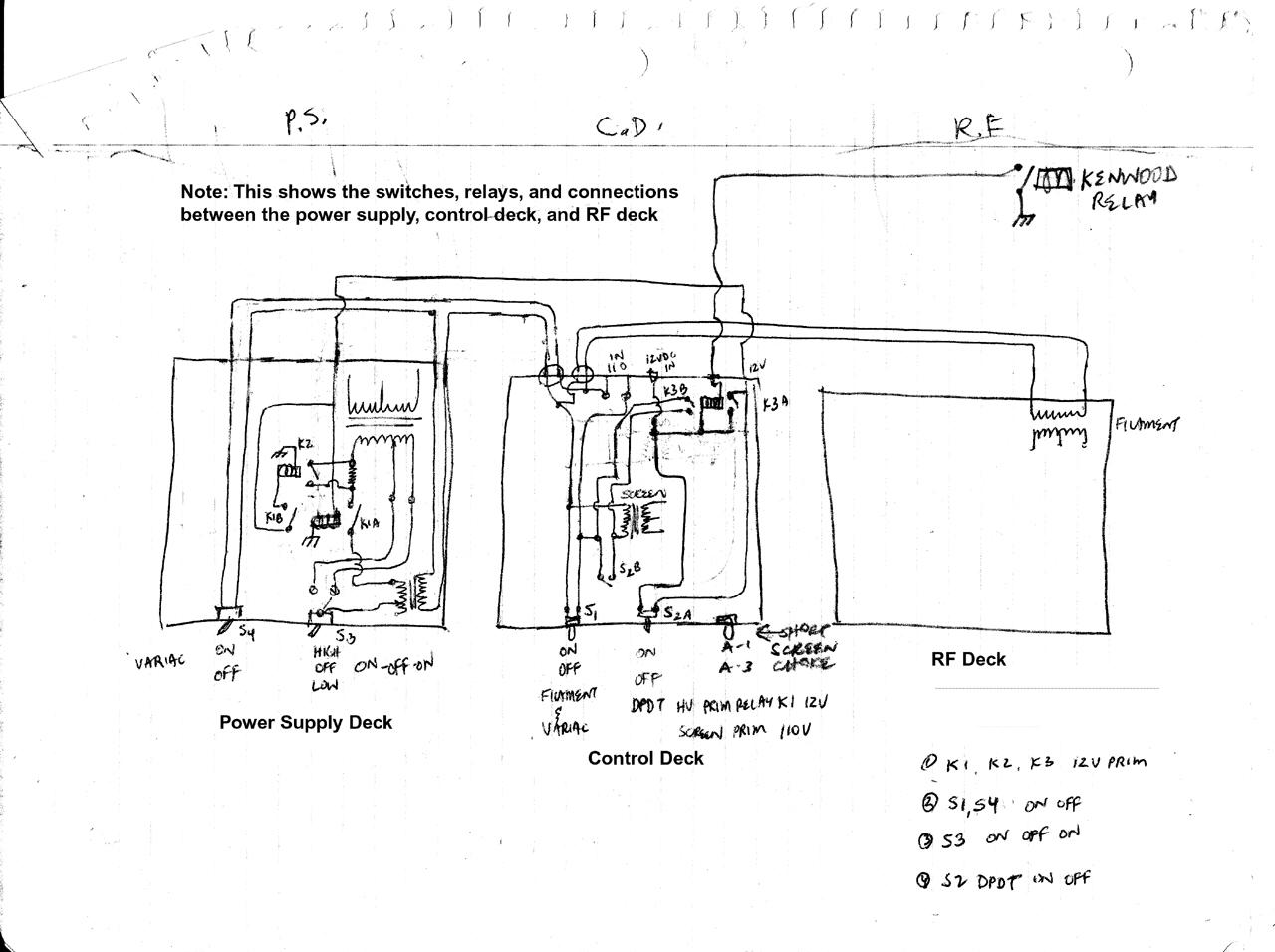

Power Supply, Control Deck, and RF Deck interconnections
